Proxisky UMi

Overview

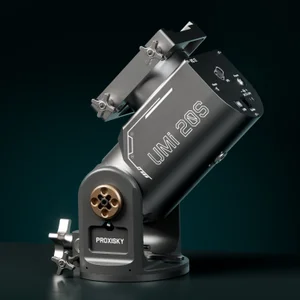

Proxisky UMi mounts (UMi17X, UMi20S and relatives) are compact strain-wave star trackers / GoTo mounts. They run OnStep-derived firmware, so all standard telescope behavior — slewing, tracking, guiding, parking, alignment, meridian flips, and the focuser/rotator interfaces — is exactly OnStep’s and is handled by INDI’s LX200 OnStep driver.

indi_lx200_proxisky is a thin subclass of LX200 OnStep. It adds only the vendor-specific commands that Proxisky layered on top of OnStep and that stock OnStep does not implement: travel limits, the anti-collision system, servo PID gains, and a handful of board settings.

NOTE

If you are looking for how to slew, track or guide, the standard OnStep driver documentation applies unchanged. This page covers only what the Proxisky layer adds on top.

Features

Everything below appears on one of four Proxisky tabs in the INDI Control Panel. Each control is published only if the mount answers the corresponding query, so the panel reflects what your particular model and firmware actually support.

• Model / firmware report, e.g. UMi20S|1.0.6
• RA travel limits — left/right rotation limits in degrees, plus an enable switch
• Dec travel limits — CCW/CW limits in degrees, plus an enable switch
• Anti-collision (ACS) — enable, per-axis sensitivity thresholds, collision counters, counter reset
• Servo PID gains — four gains per axis (angle Kp/Ki, speed Kp/Ki) for RA/Azm and Dec/Alt
• Supervised GOTO — enable plus a tolerance in degrees
• Supervised Home and Dec second home enable switches
• Status LED on/off
• Auto tracking and power-loss memory switches
• ASIAIR homing compatibility behavior

Installation

The driver ships with INDI core - there is nothing extra to build and no dependencies beyond INDI itself. No additional udev rules are needed; UMi mounts present themselves through a standard USB-serial adapter.

indiserver -v indi_lx200_proxisky

In KStars/Ekos, choose Proxisky › UMi in the profile editor.

IMPORTANT

The Proxisky › UMi catalogue entry previously launched the generic LX200 OnStep driver under the device name LX200 OnStep. It now launches indi_lx200_proxisky under the device name Proxisky UMi. Since INDI keys saved settings by device name, existing users need to re-select the port and re-save their configuration and park position on first connect. Nothing is deleted, and selecting LX200 OnStep manually still works, but exposes no vendor controls.

Configuration

Connection

Serial at 9600 baud, 8N1 is the default and matches what the mount uses; leave the baud rate unchanged unless you have a specific reason to alter it. TCP/IP is also supported, inherited from LX200 OnStep, for network-attached mounts.

Connect as usual from the Main Control tab. Vendor detection runs once during connect and adds roughly a second on serial.

The Proxisky tabs

Tab	Contents
Proxisky Settings	Model, Status LED, Auto Tracking, Power-loss Memory, ASIAIR Homing, Supervised Home, Dec Second Home
Proxisky Limits	RA and Dec travel limits and their enable switches
Proxisky ACS	Anti-collision enable, sensitivity, collision counters, counter reset
Proxisky Advanced	Supervised GOTO and tolerance, RA/Azm and Dec/Alt PID gains

WARNING

The travel-limit fields (Left/Right, CCW/CW) use the vendor’s own terms, taken directly from the Proxisky Windows tool. Nothing in the protocol maps them to East/West or to any sky direction, and the mapping may differ between mount models and between EQ and Alt-Az configurations. Determine empirically which way each limit points before relying on it, with the mount somewhere safe and nothing attached that can collide.

Value ranges

The driver enforces the same ranges as the vendor’s own tool:

Setting	Range
RA limits (left, right)	1 – 180°
Dec limits (CCW, CW)	90 – 200°
ACS threshold, RA	10 – 59999
ACS threshold, Dec	100 – 59999
Supervised GOTO tolerance	5 – 30°
PID angle Kp/Ki, speed Kp	11 – 1999
PID speed Ki	11 – 80

These come from the vendor tool’s validation, not the firmware - an in-range value can still be refused by the mount. Every write is read back and verified: if the mount refuses or stores something different, the property turns red (Alert) and the log explains what the mount actually holds.

Usage & Tips

Settings that need a power cycle

Some settings are stored immediately but only take effect at the next power-up. For these the property still turns green (Ok) since the write itself succeeded, and the log message notes that a power cycle is required.

Needs a power cycle: Status LED, Auto Tracking, both PID vectors.

Effective immediately: Power-loss Memory, ASIAIR Homing, Supervised Home, Dec Second Home, Supervised GOTO, RA/Dec limit enables, ACS enable and thresholds.

PID gains

Changing PID gains is a genuine servo-tuning operation and can leave the mount unable to track if set incorrectly. Write down the existing values before changing them.

• The driver refuses to write while the mount is moving - the commit command restarts the axis, so writes are only accepted with the mount idle or parked.
• After a commit, the axis restart makes the mount briefly report all four gains as zero (roughly 70 ms). The driver waits this out before verifying, so this does not show up as a mismatch.

Gains take effect after a power cycle.

If a control is missing

Most of this protocol has no capability query - the only way to find out whether a mount supports a feature is to ask for its current value and see whether anything comes back. Detection runs once, at connect, with one retry per query.

TIP

If a control you expect is absent, disconnect and reconnect to re-run detection. The log records every feature that stayed silent at Warning level. If a control is consistently absent across reconnects, your mount or firmware genuinely does not have it.

Supervised Home may be refused

On at least some UMi20S firmware, the mount answers the Supervised Home query (so the control is published) but refuses every attempt to change it. This is expected: the driver reports the refusal and reverts the switch to what the mount still holds - there is nothing to fix on the INDI side.

Simulation mode

Simulation mode exposes no Proxisky properties, by design - every vendor property mirrors a value read back from real hardware, and there is nothing to read in simulation. You get the standard OnStep simulated telescope and nothing else.

Do not mix up the two drivers

A UMi will connect and work under the generic LX200 OnStep driver, but with none of the vendor controls and no indication in the UI that they exist. If your Proxisky tabs are missing entirely, check which driver your profile actually selected. Conversely, do not select Proxisky UMi for a non-Proxisky OnStep mount - the vendor commands are meaningless to stock OnStep firmware.

Logging

To see the raw vendor exchange, enable debug output on the Options tab, or:

indi_setprop 'Proxisky UMi.DEBUG.ENABLE=On'
indi_setprop 'Proxisky UMi.DEBUG_LEVEL.DBG_DEBUG=On'

Note that indiserver -v does not relay driver messages to its own output - they go to connected clients. Read them in the KStars INDI log window, or with a client such as indi_getprop.

Tested Against

Mount	Proxisky UMi20S
Firmware	1.0.6
Transport	Serial, 9600 8N1

All 19 vendor properties, every write path, the refusal and out-of-range paths, and connect / reconnect / disconnect were exercised against this hardware. TCP transport and models other than the UMi20S are supported by the same code but have not been tested on hardware.

Issues

There are no known bugs for this driver. If you found a bug, please report it at INDI’s GitHub Issues page.
