Pegasus FlatMaster Neo

Pegasus FlatMaster Neo — INDI Auxiliary Driver

Section titled “Pegasus FlatMaster Neo — INDI Auxiliary Driver”

This driver supports the Pegasus Astro FlatMaster Neo flat field panel, dust cap control, dew management, environmental sensors, and network/hotspot features via INDI.

Overview

Section titled “Overview”

Implemented INDI interfaces:

  • AUX_INTERFACE
  • LIGHTBOX_INTERFACE
  • DUSTCAP_INTERFACE
  • WEATHER_INTERFACE

The FlatMaster Neo communicates over USB serial. The driver exposes lightbox on/off and dimming, cap park/unpark and angle control, dew heater and auto dew, temperature/humidity/dew point monitoring, and WiFi/hotspot management.

Supported Hardware

Section titled “Supported Hardware”
  • Pegasus Astro FlatMaster Neo

Driver Metadata

Section titled “Driver Metadata”
  • Driver Name: Pegasus FlatMaster Neo
  • Executable: indi_pegasus_flatmaster_neo
  • Family: Lightbox, Dustcap
  • Manufacturer: Pegasus Astro
  • Platforms: Linux, BSD, macOS
  • Version: 1.2

Installing & Running

Section titled “Installing & Running”

The driver is included in the INDI core package.

Run it manually using:

Terminal window
indiserver -v indi_pegasus_flatmaster_neo

If you build only this driver from the INDI source tree, the build target is also indi_pegasus_flatmaster_neo.

Connectivity

Section titled “Connectivity”

USB Serial

Section titled “USB Serial”

The FlatMaster Neo uses a USB serial connection. The driver scans serial ports and matches devices whose system name contains FlatMaster.

  • Default baud rate: 9600
  • Supported connection: USB serial only
  • Network / Bluetooth: not used for the serial interface

First Time Connection

Section titled “First Time Connection”
  1. Power on the FlatMaster Neo.
  2. Start the driver from an INDI client or manually with indiserver -v indi_pegasus_flatmaster_neo.
  3. Select the detected serial port or allow automatic scanning.
  4. Click Connect.

The driver handshakes with the device using F# and expects a response containing FMNEO.

Features

Section titled “Features”
  • Lightbox on/off and brightness control (0–100)
  • Dust cap park/unpark and target angle control (0–270°)
  • Dew heater power control (0–100%)
  • Auto dew enable/disable
  • Dew aggressiveness level (0–10)
  • Dew threshold adjustment (1–50)
  • Save dew settings to device memory
  • Auto-close cap control
  • Temperature, humidity, and dew point sensors
  • Temperature and humidity calibration offsets
  • Device status overview, including light intensity, cap state, dew state, and light sensor readings
  • Firmware version reporting
  • Device uptime reporting
  • Remote device reboot
  • WiFi channel configuration
  • Hotspot enable/disable and credentials management
  • WiFi network scan and connection
  • WiFi factory reset

Driver Controls

Section titled “Driver Controls”

Firmware

Section titled “Firmware”

The driver exposes a read-only Firmware property showing the reported firmware version.

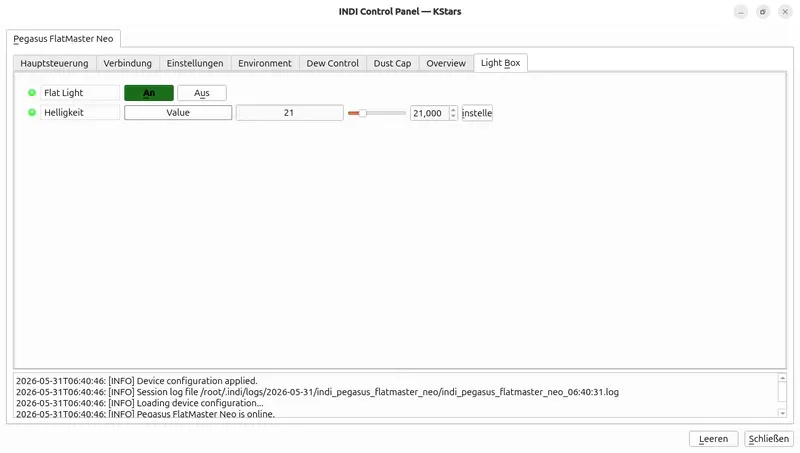

Light Box

Section titled “Light Box”

The Light Box tab includes:

  • On/Off
  • Brightness

Control commands:

  • FE:0 — disable lightbox
  • FE:1 — enable lightbox
  • FL:<value> — set brightness

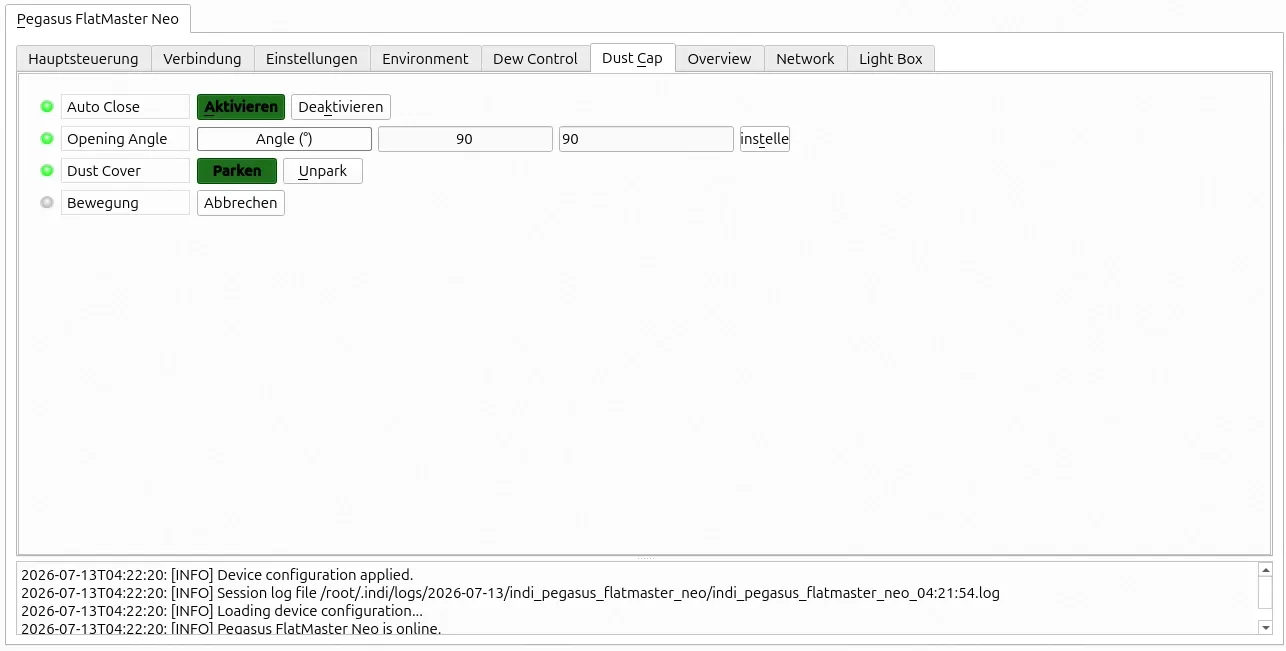

Dust Cap

Section titled “Dust Cap”

The Dust Cap tab includes:

  • Open
  • Close
  • Angle

Control commands:

  • FS:0 — park the cap
  • FS:1 — unpark/open the cap
  • CD:<angle> — set target opening angle

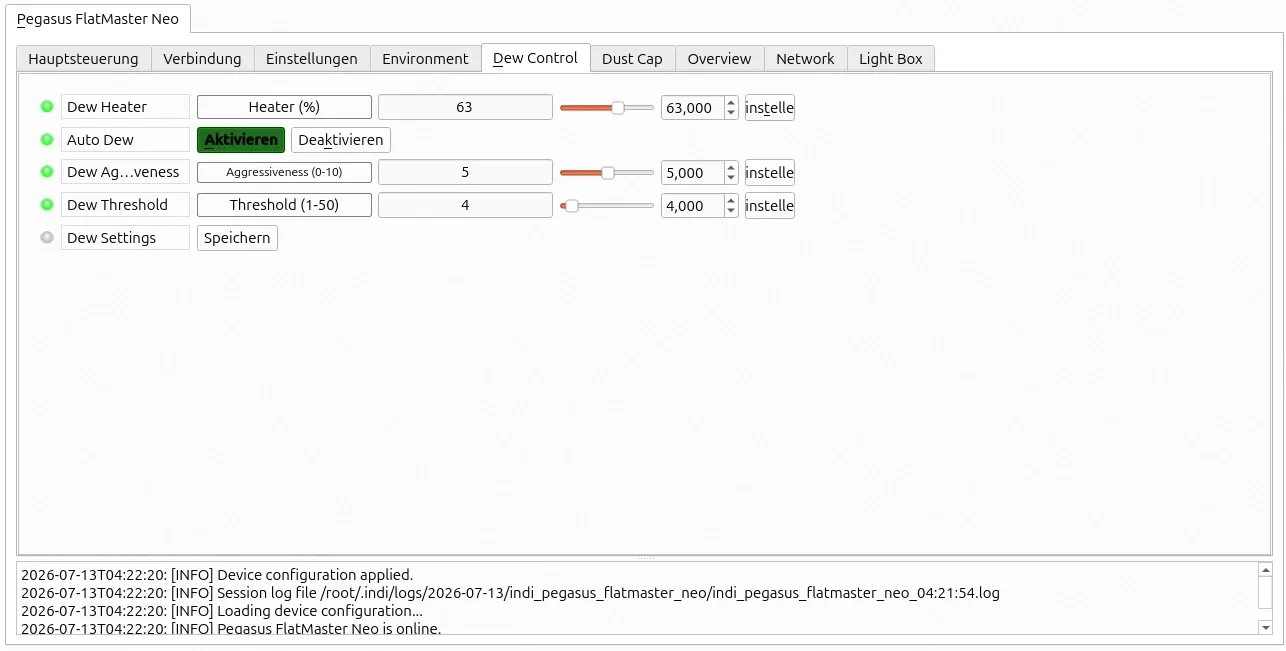

Dew Control

Section titled “Dew Control”

The Dew Control tab includes:

  • Dew Heater percentage
  • Auto Dew enable/disable
  • Dew Aggressiveness level (0–10)
  • Dew Threshold (1–50)
  • Save Dew Settings

Control commands:

  • DH:<value> — set heater power
  • PD:0 / PD:1 — disable/enable auto dew
  • DA:<level> — set dew aggressiveness
  • DT:<value> — set dew threshold
  • DSTR — save dew settings

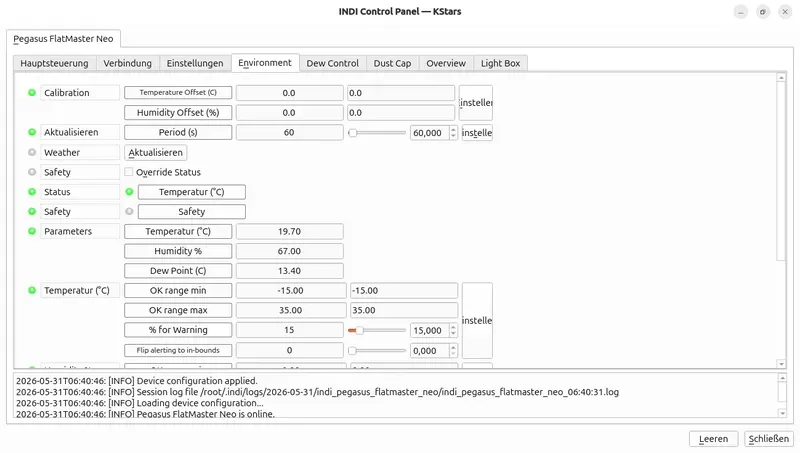

Environment / Weather

Section titled “Environment / Weather”

The Environment tab includes:

  • Temperature
  • Humidity
  • Dew Point
  • Temperature Offset
  • Humidity Offset

The driver queries weather data with ES and reads/writes offsets with:

  • CR — read calibration offsets
  • CT:<value> — set temperature offset
  • CH:<value> — set humidity offset

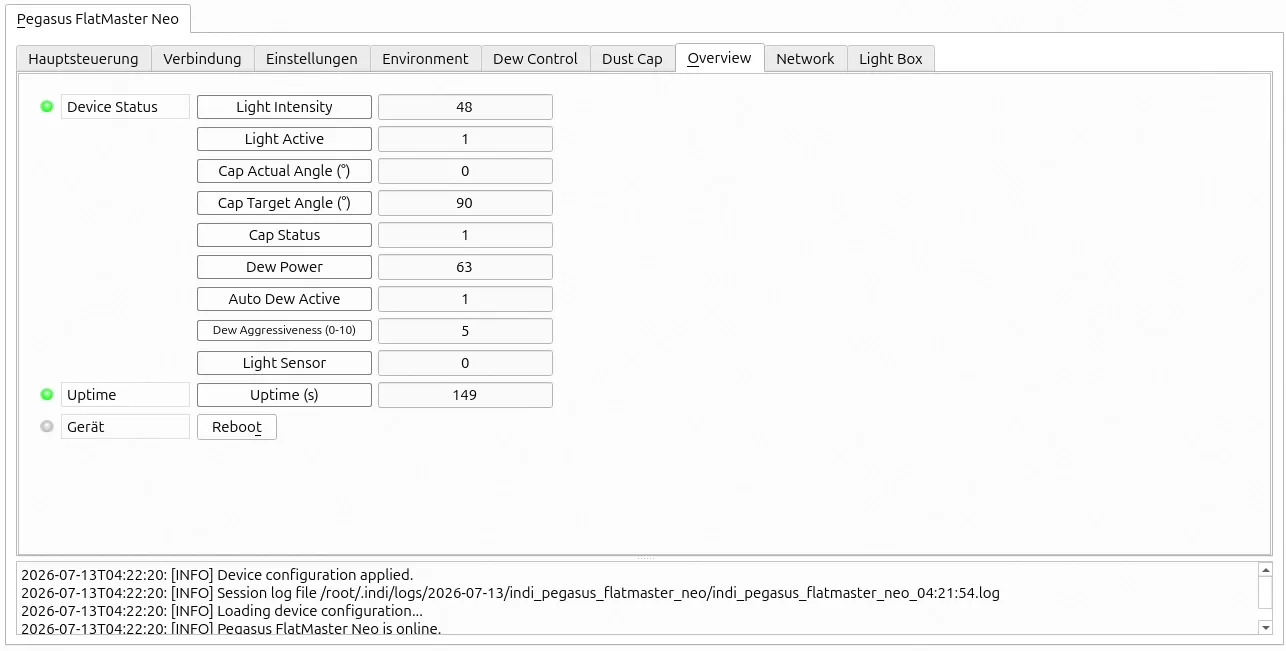

Device Status

Section titled “Device Status”

The Overview tab shows:

  • Light intensity
  • Light active state
  • Cap target angle
  • Cap actual angle
  • Cap status
  • Dew power
  • Auto dew active state
  • Dew aggressiveness
  • Light sensor
  • Uptime

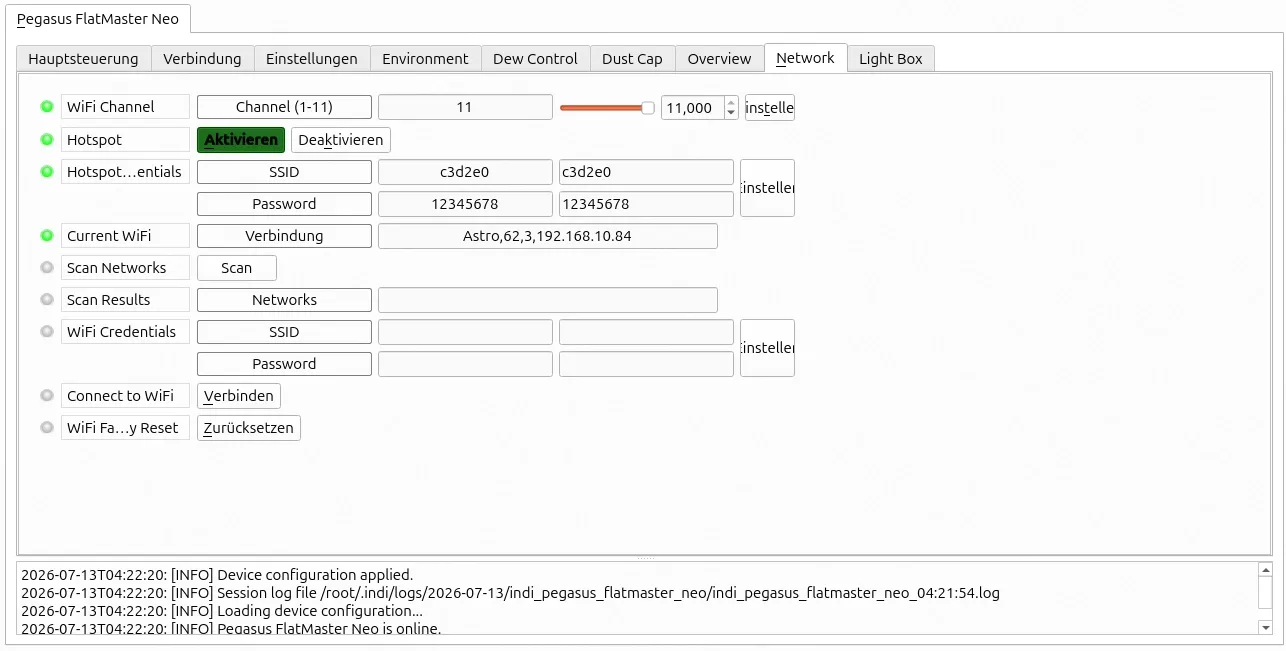

Network

Section titled “Network”

The Network tab includes WiFi and hotspot controls:

  • AC / AC:<channel> — read/write WiFi channel
  • A? / AE:0 / AE:1 — hotspot status and enable/disable
  • AL / AN:<ssid> / AP:<password> — hotspot credentials
  • WI — current WiFi connection status
  • WS — WiFi network scan
  • WN:<ssid> / WP:<password> — connect to WiFi
  • WZ — WiFi factory reset

Operation

Section titled “Operation”
  • Connect the FlatMaster Neo via USB and start the driver.
  • Use Light Box to control panel power and brightness.
  • Use Dust Cap to park, unpark, or set the cap angle.
  • Use Dew Control to manage heater power, auto dew, aggressiveness, threshold, and save settings.
  • Monitor temperature, humidity, and dew point in Environment.
  • Apply calibration offsets when sensor readings differ from a reference.
  • Use Network for WiFi and hotspot management if supported by your firmware.
  • Use Overview to verify device state, uptime, and reboot when needed.

Troubleshooting

Section titled “Troubleshooting”
  • If the driver cannot connect, verify the FlatMaster Neo is powered and visible as a serial device.
  • Ensure no other application is using the same serial port.
  • Confirm the handshake returns FMNEO; otherwise the connected device may not be supported.
  • If values do not update, reconnect and ensure the device responds to FA, ES, and CR.
  • For network issues, check SSID, password, and WiFi availability.
